Bed unit disinfection machine

  • HBCX-Ⅱ80 Bed unit disinfection machine

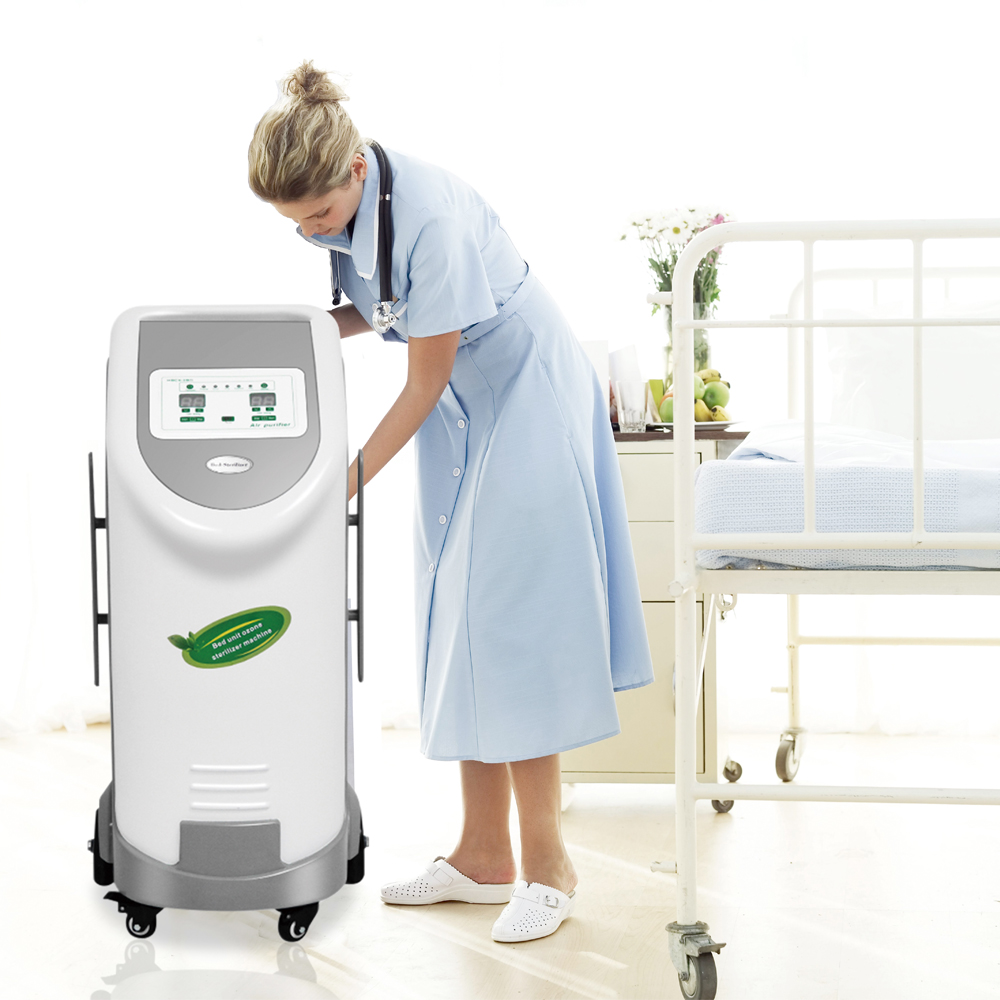

HBCX-Ⅱ80 Bed unit disinfection machine

HBCX-Ⅱ80 Bed unit disinfection machine

  • The product name:HBCX-Ⅱ80 Bed unit disinfection machine
  • Belongs to the category:Bed unit disinfection machine
  • Product popularity:1218

Product introduction:

It is an important indicator of hospital management to control the cross-infection using bed unit disinfection machine. The cross-infection in hospital wards: the disinfection of unit bed disinfection machine for mattresses, blankets, sheets, pillows and other items is not completely. Over the years, the routine disinfection methods of hospital for beds, mattresses, blankets, sheets, pillows and other items include ultraviolet-ray irradiation or autoclaving. These methods can only achieve superficial disinfection effect but not completely and effectively kill the potential germs at mattresses, blankets, sheets and pillows. This computer-controlled bed unit ozone sterilizer provides economic and efficient disinfection equipment for hospitals to control cross-infection and cut off infection route, because it can kill a variety of bacteria in beds and air.


It consists of a stainless steel enamel ozone tube, module high-voltage power supply, resolving apparatus, pump, sterilization pipes and fittings, sterilization bedspread and bags, large-screen Chinese touch operation monitoring systems and chassis.

Working principle:

This machine will first pump the air from the bed unit (closed in sterilization bedspread and bags) to form an approximate vacuum (enable ozone and bed unit fully contact); then ozone gas will be generated in stainless steel enamel ozone tube and pumped to bed unit for sterilization. After the completion of sterilization, the remaining ozone in bed unit will be pumped to reduce oxygen through ozone resolving apparatus.

Equipment advantages:

Beautiful appearance and easy to move;
With air compression technology, the ozone can completely go into cotton and other items for disinfection;
With special stainless steel ceramic ozone generators, the ozone production volume is large with high concentration and
long service life;
Effectively kill a variety of bacteria, viruses and propagules, with a killing rate of 99%;
Be able to remove a variety of odors, such as the smells of drug or blood and so on;
The disinfection process is controlled completely by computer, and the control are classified into automatic / manual modes,
and all programs can be set and selected within the range from 1 to 99 minutes freely, with Chinese display;
Panel program adopts automatic memory after setting the time with simple operation; using new analytical techniques for
ozone, the residual ozone will not pollute the environment;
Automatic fault detection, shutdown and alarm;
Two beds can be sterilized simultaneously;
In the disinfection process, the concentration of ozone can be enriched continuously;
Pump and piping materials resist oxidation with long service life.

Scope of application:

It is mainly applicable to hospital mattresses, bedding, blankets, pillows, sheets, etc.; in addition, it is also applicable to towels in hotel as well as air sterilization in other public places.
